Roof fasteners and plates are use for a variety of connections providing superior performance and easy installation. They are compatible for most roof systems to attach rigid insulation to steel or wood deck.
APPLICATIONS
Attach to wood or steel Up to 16ga max (.060” | 1.52mm)

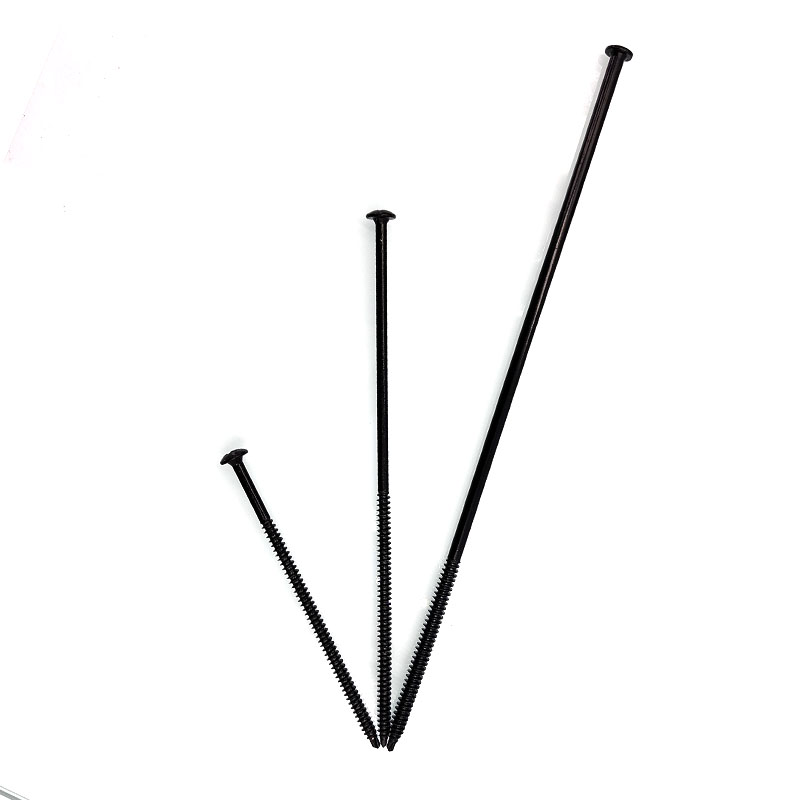

| #12 | Length | (Inch) | 1 5/8 | 2 1/4 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| (mm) | 41 | 57 | 75 | 100 | 127 | 152 | 178 | 203 | 227 | 254 | 280 | 303 | 323 | 356 | ||
| Unit Weight | (g) | 9.2 | 10 | 11 | 13.7 | 17 | 20 | 23 | 26.5 | 30 | 33.5 | 37 | 40.5 | 44 | 47.5 |

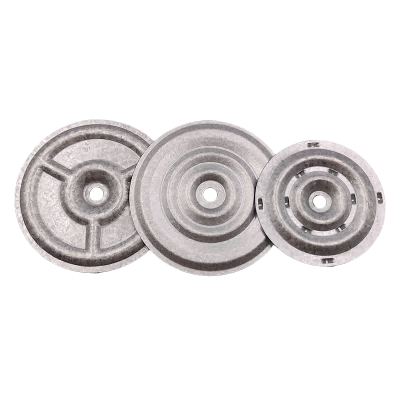

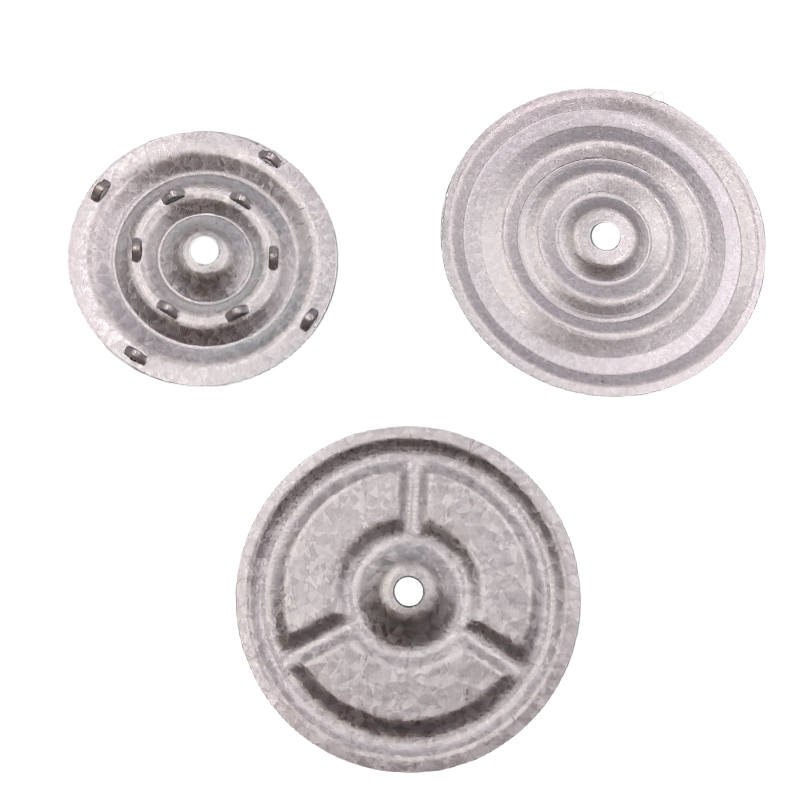

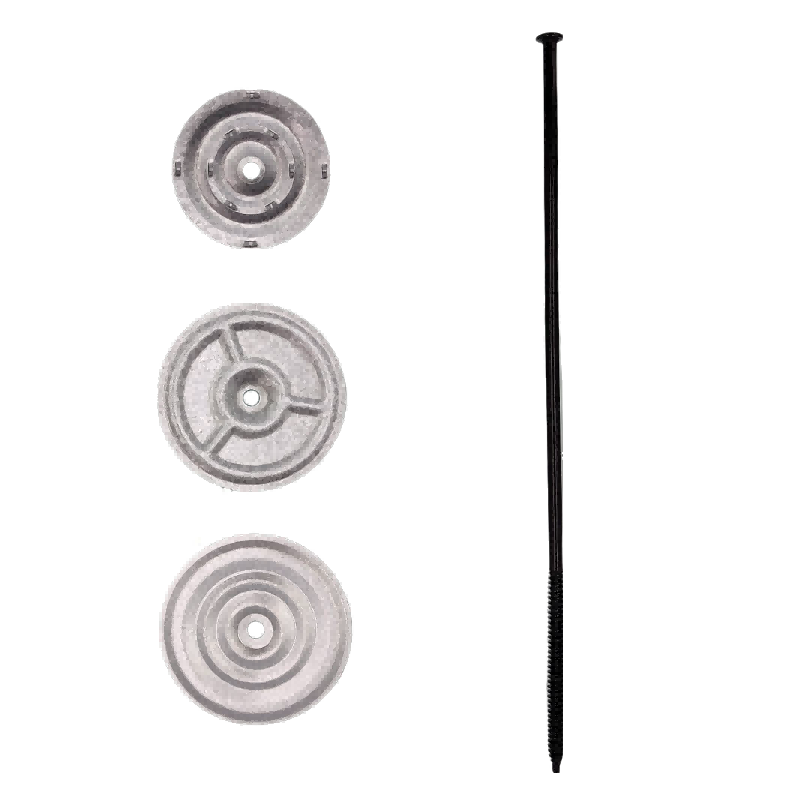

3" METAL STRESS PLATE
Testing: Meets or exceeds Factory Mutual I-60 or I-90 wind up lift specifications when properly installed on most insulation boards.
Feature: Plate is formed from 26 gauge steel.
Use with Phillips Truss Head fastener.
Uses: They are used with virtually all types of insulation board used for roofing systems.
●3" x 3" Square Recessed Galvalume Metal
●3" x 3" Square Flat Bottom Galvalume Metal
●3" Across Flats Hex Galvalume Metal
●3" Across Flats Hex Plastic
●2" Round Galvalume Metal (Standard)
●3" Round Galvalume Metal (Standard)
●3" Round Plastic
Application

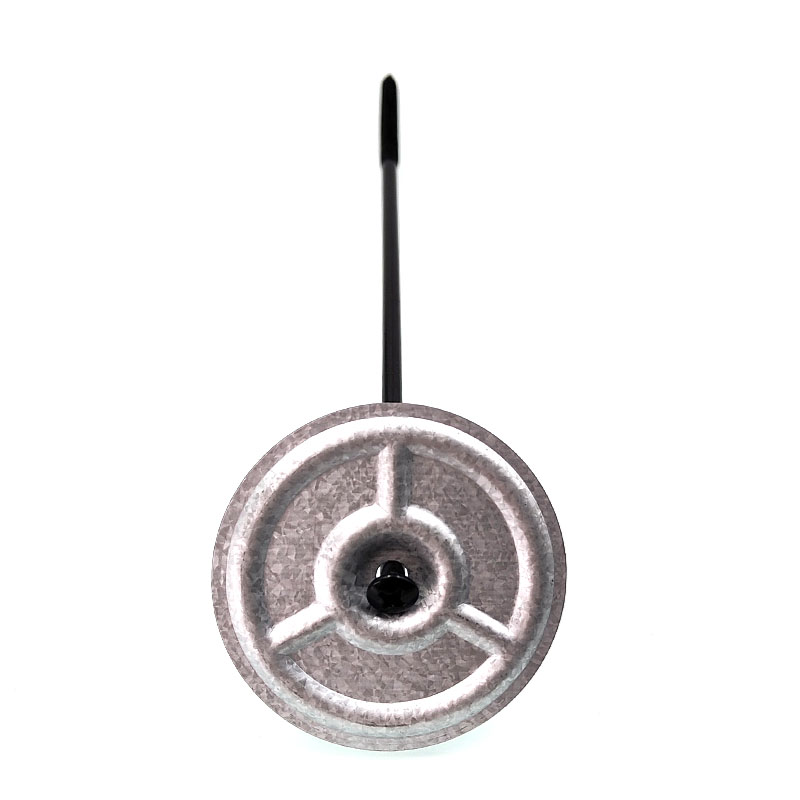

Roof fasteners and plates #12 Drill Point Roofing Fastener are designed to secure insulation coverboards andbase sheets to16-22 gauge steel roof decks. Allow for a minimum of 19 mm penetrationthrough the underside of the deck.

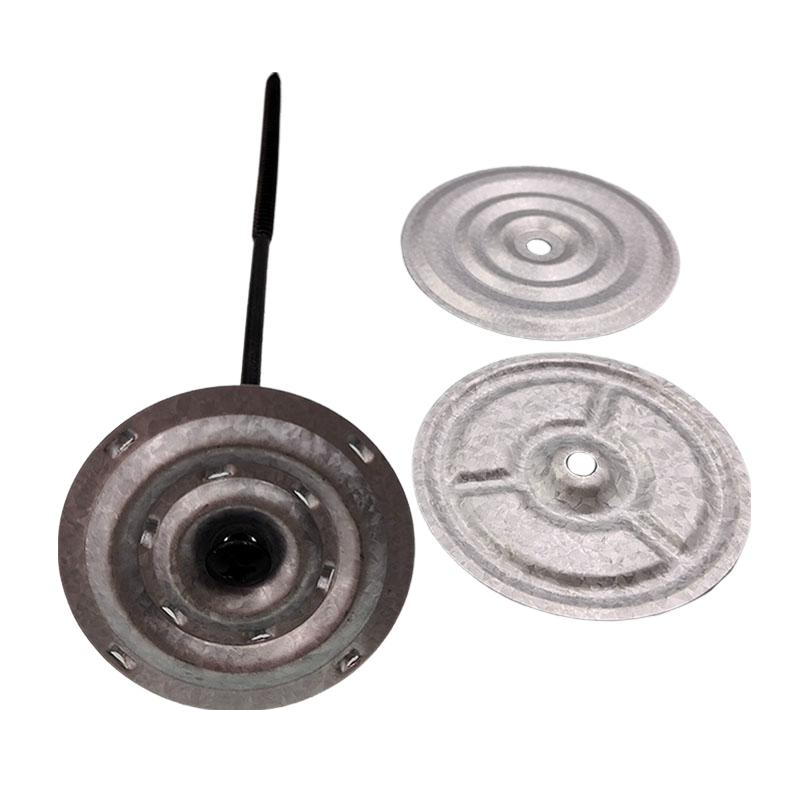

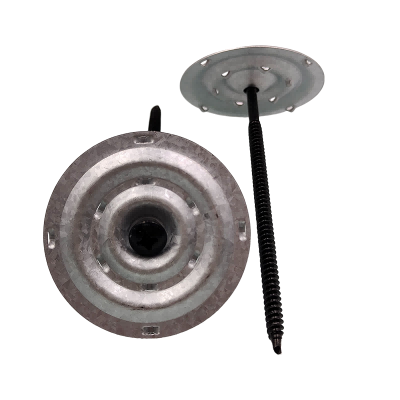

This product is also available pre-assembled with 3” Galvanized Steel insulation Plates.Pre-assembled insulation screws and plates are fast to install and increase productivity inthe mechanical attachment of roofinsulation boards.
Features & Benefits
#3 Phillips truss head Double flute drill point speeds penetration through steel deckExclusive tapered entry threads wedges fastener tightly into the deck for superiorback-out resistance
Black coating offers excellent corrosion resistance
Corrosion Resistance
1800 hrs salt spray NSS resistance tested by SGS, appearance rating above 10(ASTM B117-18)15 cycle Kesternich test, no red rust (GB 9789)1500hr salt spray NSS resistance test, no red rust (GB/T 10125)
