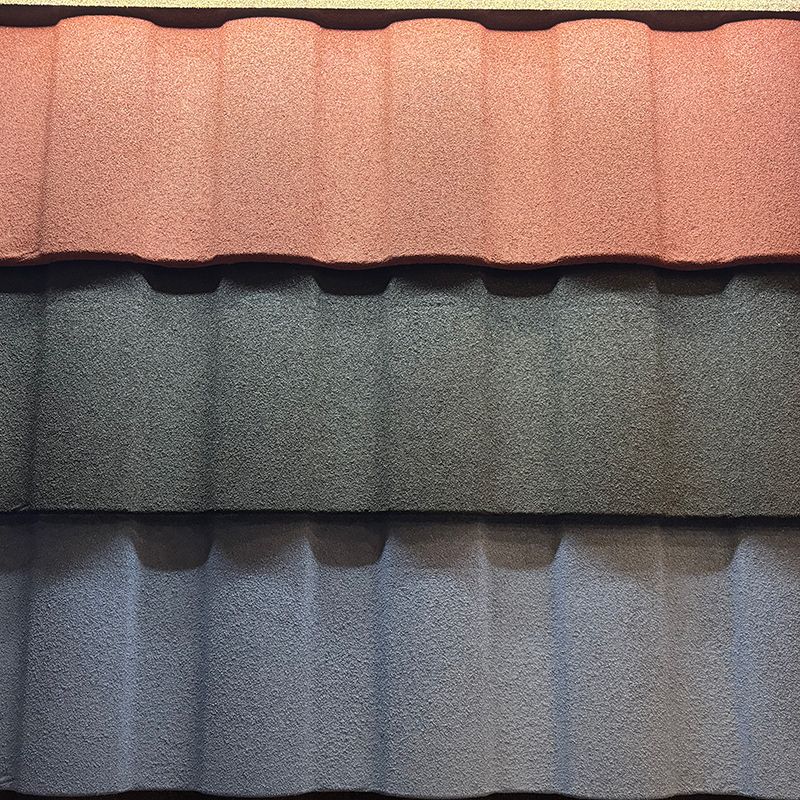

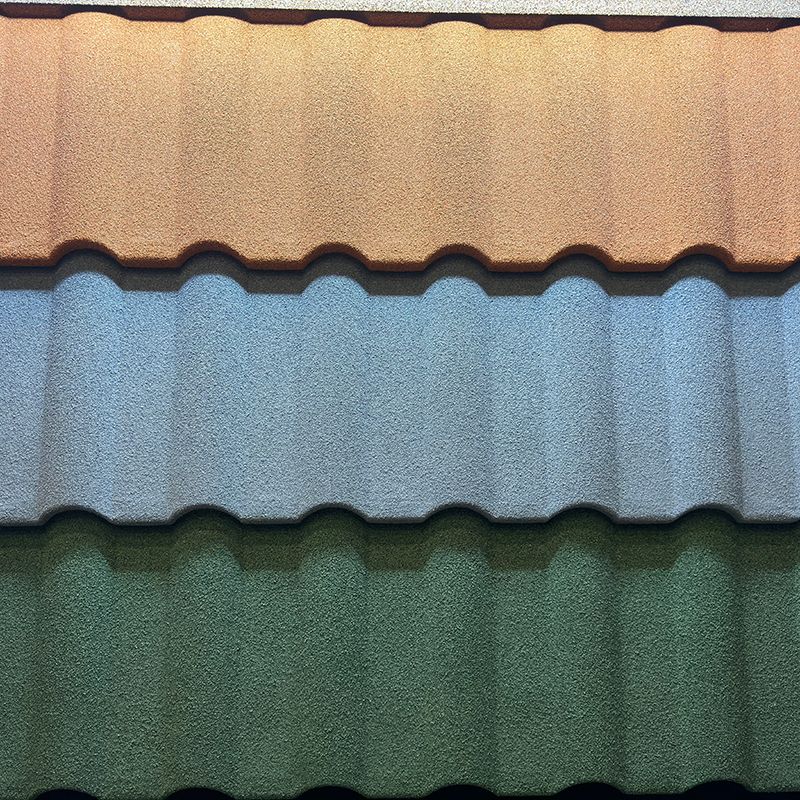

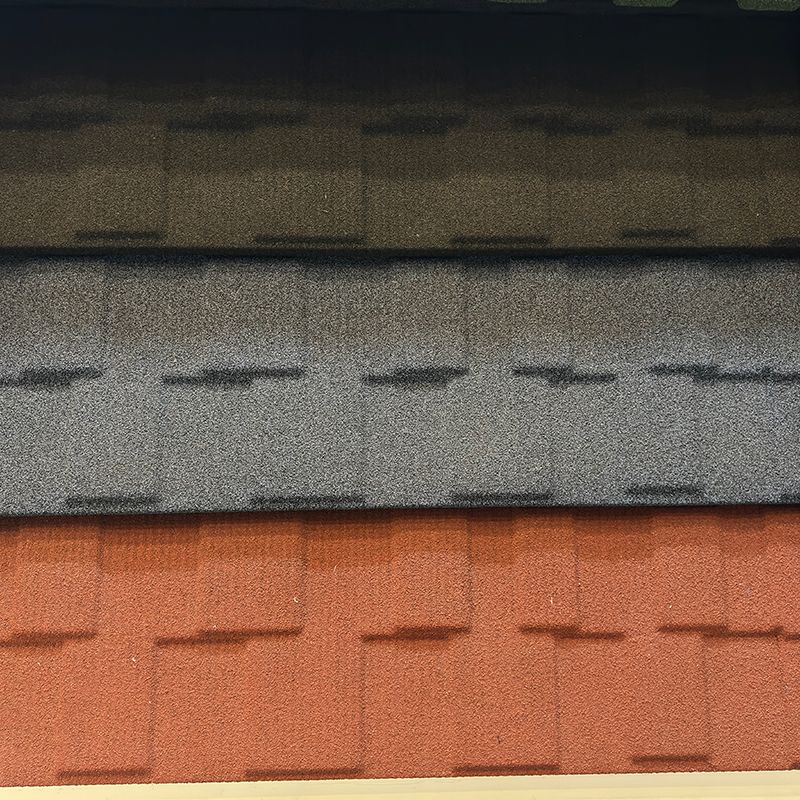

Resemble the look of traditional asphalt shingles but without the inherent ongoing issues that many homeowners face. This low-profile Stone Coated Steel panel comes with patterns of shading and colors that reflect the popular styles but with the bonus of a far superior serviceable life. The roof shingles are available in a choice of colors from deep charcoals to earthy browns and greens, and the blended tones of weathered shakes.
Fire Resistance. Stone-coated metal shingles are designed to resist fire, providing a safer roofing option.
Withstand earthquake. With each tile weighing only one-sixth of traditional tile weight, they minimize damage during earthquakes.
Wind resistance. Unique tile installation structure, these tiles are capable of withstanding hurricanes.
Storm Resistance. Offer exceptional protection against heavy rain, ensuring a leak-free roofing system.
Resistant to algae. Unique algae-resistant colored sand achieves better algae resistance, maintaining a clean and attractive appearance over time.
Easy installation. These tiles are designed for simple installation, making the roofing process more efficient.
Re-usable. Roof tiles are eco-friendly and recyclable. Reducing the impact on the earth.
INSTALLATION
Decking: Min. 15/32” in. thick, grade B-C APA rate plywood or equal.
Patterns: Wood Patterns are to be 2” x 2”, standard grade Douglas fir or better, nominal
thickness 1.5” x 1.5”. Counter Patterns are 1” x 4”, standard grade Douglas fir or better,
nominal thickness .75” x 3.625”
Underlayment: A minimum underlayment of #30 felt or synthetic underlayment is required on
all new construction and tear-offs. SANGOSUNRAVEN stone coated roof tiles are
considered to be non-combustible steel panels, but in certain conditions, special
underlayments are required. Check with local Building Departments prior to installation.
Roof Saddles: Roof saddles are required behind any roof protrusion 48” in width and above.
Panel diverters are easy to make and are a good way of diverting water from the back of the
protrusion and should be used where necessary.
Sealants: A one-part polyurethane type sealant is recommended.
