Prepainted Galvanlume Steel Coil Galvanized Steel Coil

• ASTM/JIS/GBT/EN etc
• More accurate temperature control, the curing is more guaranteed.
• Dust-free surface
• Pressure sensor equipped at the coating line, ensure the color coating is more even.
• Anti-fingerprint protective film
• Exclusive and customized color and product design.
• Long-lasting color warranty.

1. Standard: ASTM/JIS/GBT/EN etc
2. Steel Grade: SGCC, DX51D, S250GD, S550GD etc
3. Thickness: 0.15mm - 2.0mm
4. Width: 600mm - 1500mm

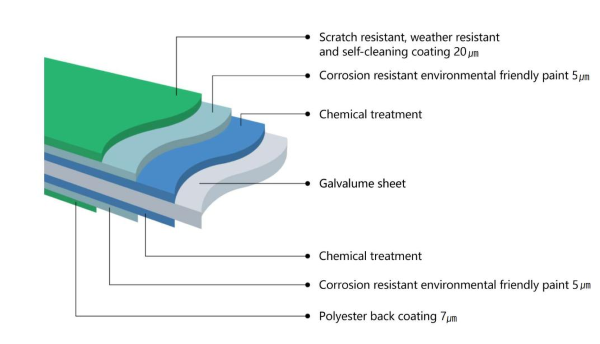

5. Top paint/back paint: 5+15μm/7-9μm, 5+20μm/10-12μm or as per client’s needs
6. Zinc coating: AZ30 - AZ150
7. Color: Any color as per client’s needs
8. Coil ID: 508mm/610mm
9. Coil weight: as per client’s needs
10. Pack: vertical or horizontal package

Complete production process from CRC steel coil to color coated steel coil.

Exclusive and customized color and product design.

Scientific and strict management and quality system.

Long color life time warranty.

Color coated steel coil line:

The oven is longer than regular ones.  Temperature control is more accurate.  Clean surface - dust-free design. Pressure sensor equipped on the coater and painting film model.  Painting film is more accurately even. Pressure sensor equipped on the coater and painting film model.  Painting film is more accurately even.

Total six cleaning sections - increase the adhesion of painting. U-shape coaters design. Three-roller coaters ensures evener painting .

Prepainted steel sheet is commonly used for civil and industrial constructions, which provides higher anti-corrosion property and a longer lifespan than aluzinc steel sheets.

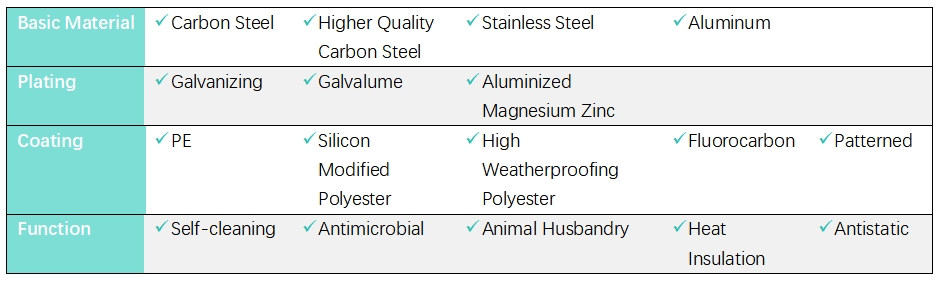

The base metals for prepainted steel sheet consist of cold rolled, hot-dip galvanized, electro-galvanized and hot-dip zinc-alu-mag base metal. The finish coats of prepainted steel sheets can be classified into groups as follows: polyester, silicon modified, polyesters, polyvinylidene fluoride, high-durability polyester etc.
Construction and building: roofing, ventilating duct, handrail, partition panel, etc..

55% Al-Zn Alloy Coated Steel Coil

Unique and evenly distributed spangle.

World-leading corrosion resistance control technology

- small dentrite spacing

- Perfect coating structure

- advanced air knife baffle technology to make the coating more uniform

Thicker anti-fingerprint protection
