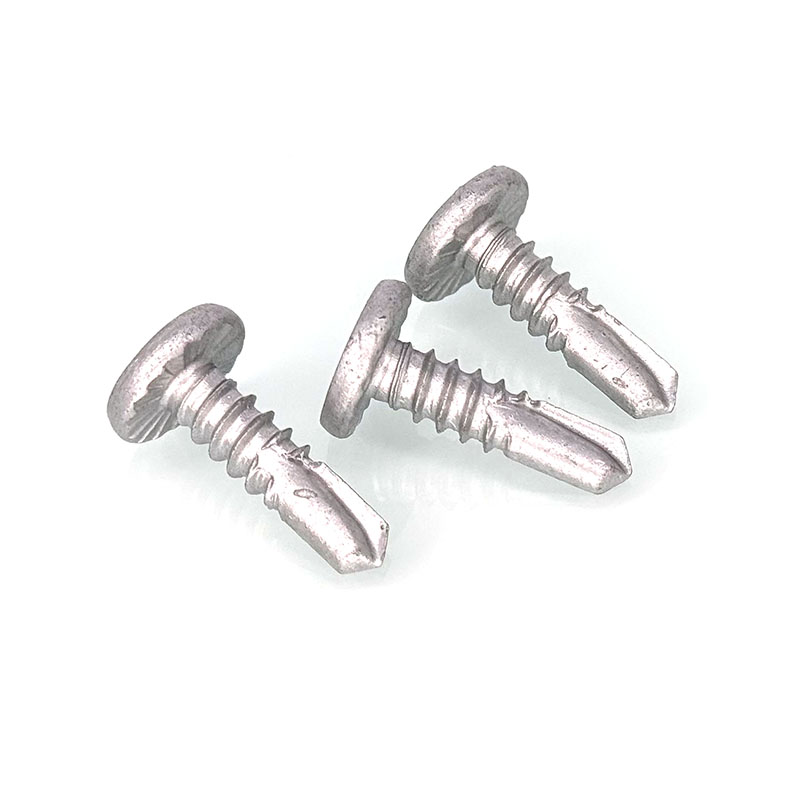

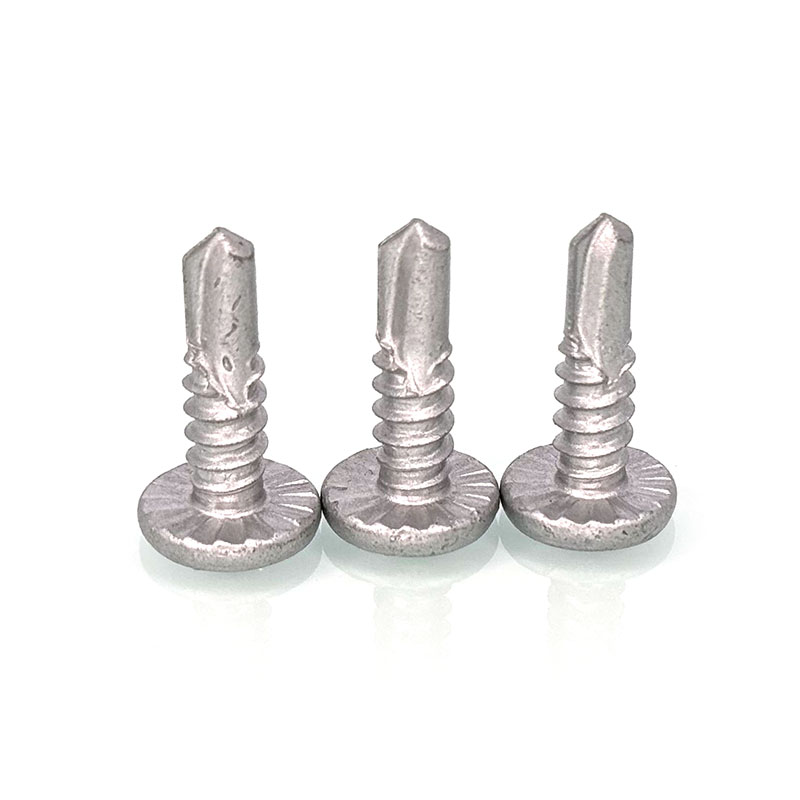

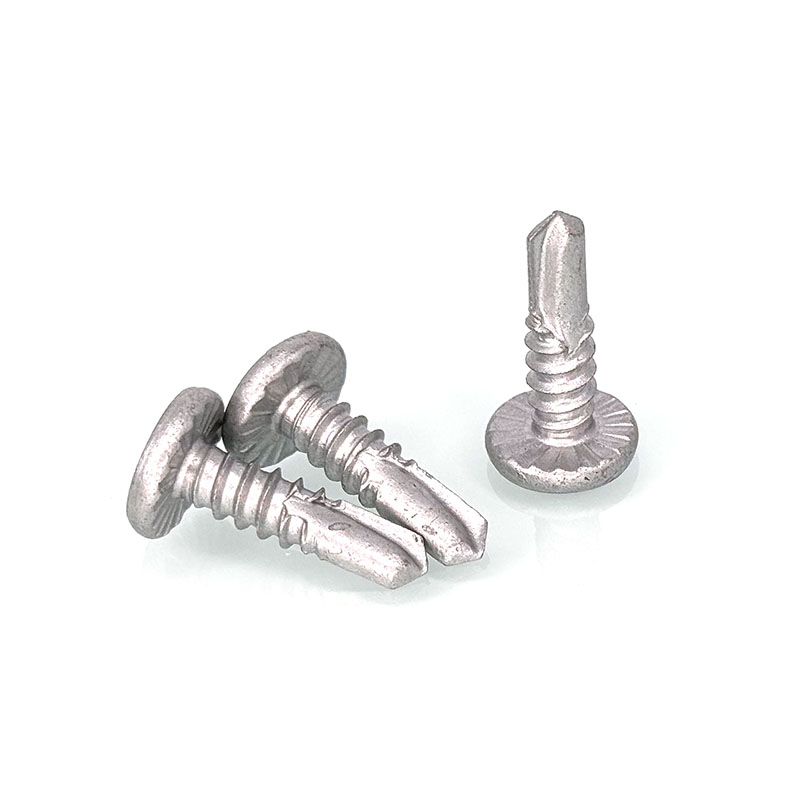

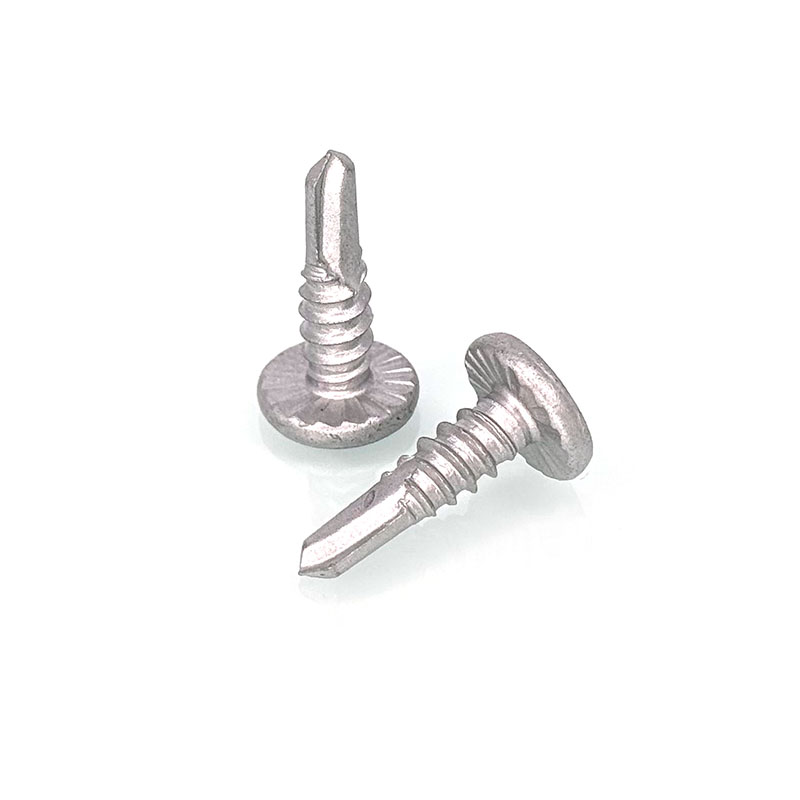

Ruspert pancake head self drilling screw

Self drilling screws are great for metal to metal applications. Excellent for fastening light-gauge metal studs and track framing. They are suitable for indoor and outdoor use.

DESCRIPTION:

Designed for attaching standing seam roof clips to wood, metal and other low profile roofing attachment situations.

FEATURES:

Designed with unique head styles drill point configuration and material type to meet performance requirements to attach standing seam roof clips.

# 2 Square Drive.

Engineered profile features preventing panel damage from fastener head contact.

Installation torque drive control for uniform installation performance.

OPTIONS:

• Sizes: 1", 1-1/2" and 2" in #10 and #12 sizes.

• Surface Treatment: Ruspert

• Materials:  C1022 case-hardened carbon steel

• 1000 hour salt spray test.

• Points: Self Drilling TEK, and Type-A Sharp Point.

• Threads: Type XG Extra Pull Out Thread and Point.

• #12-8 XG thread with Very Low Profile Head

Product Description

These self-drilling screws are used in wood, fiberglass and metal and they possess a drill point enabling it to drill in its own hole in thin gauge steel. The sharp threads create their own mating thread when drilled into the material. No pre-drilled pilot holes necessary.

From the Manufacturer

These self-drilling screws are used in wood, fiberglass and metal, and they possess a drill point enabling it to drill in its own hole in thin gauge steel. The sharp threads create their own mating thread when drilled into the material. No pre-drilled pilot holes necessary.

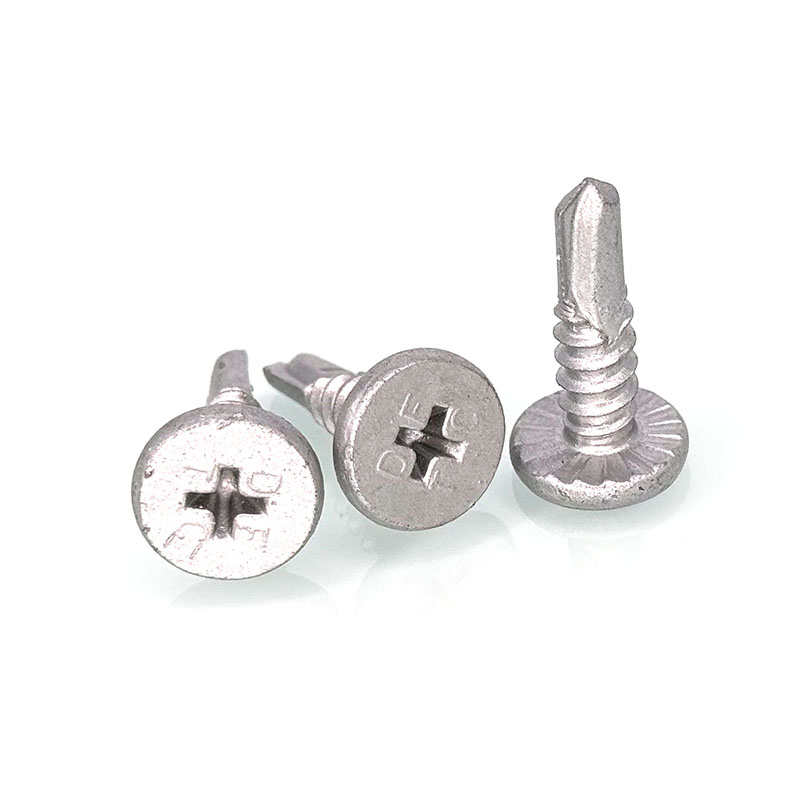

Phillips pancake head self drilling screws feature a self drilling point with self tapping threads for easy installation into metal. The TEK point pierces 20 to 14 gauge metals, and eliminates the need to drill a pilot hole, tap it, and then install the screw.
