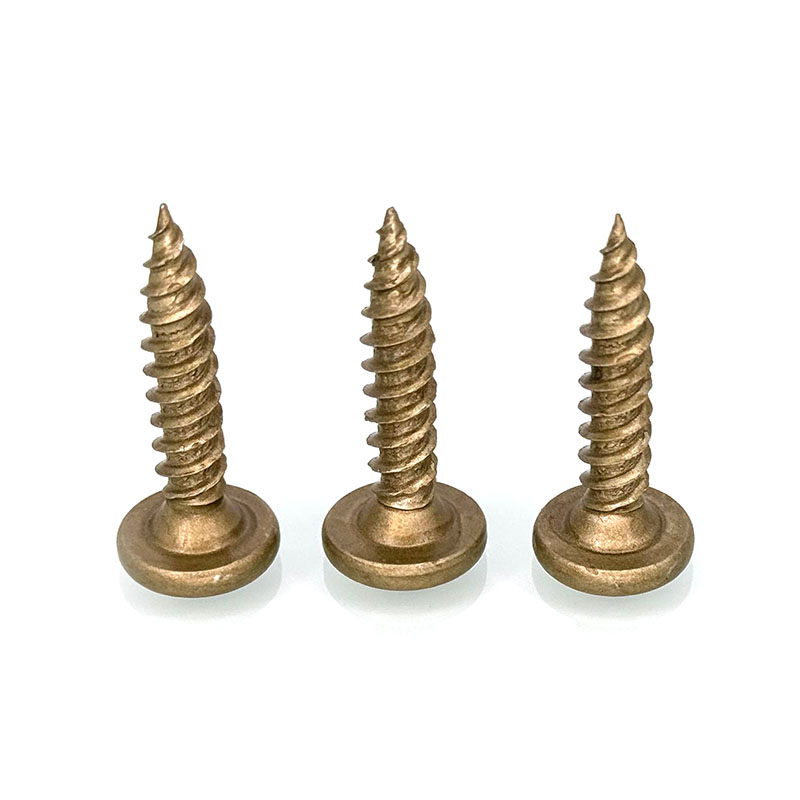

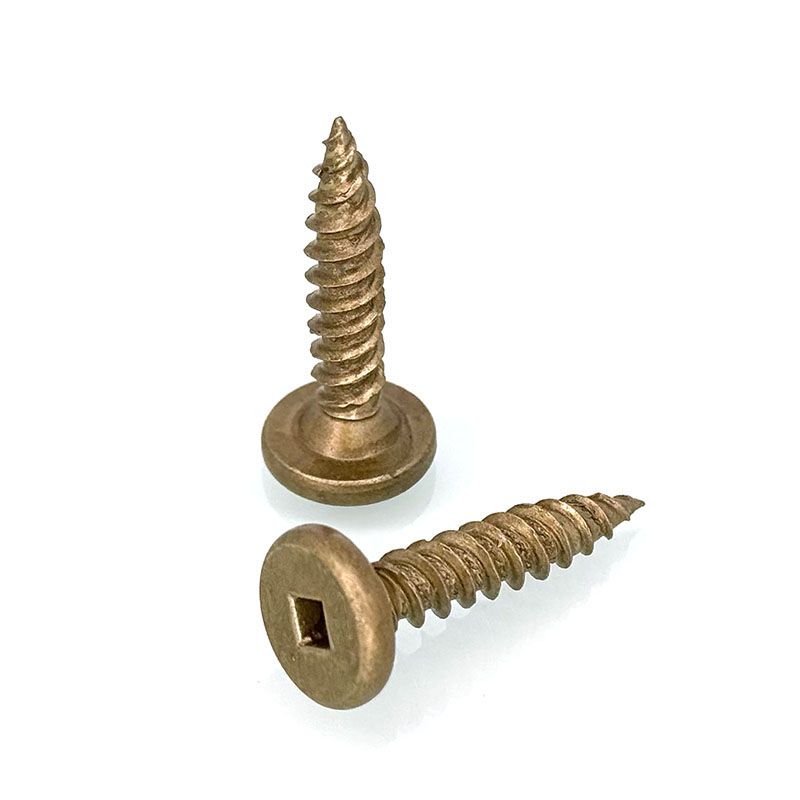

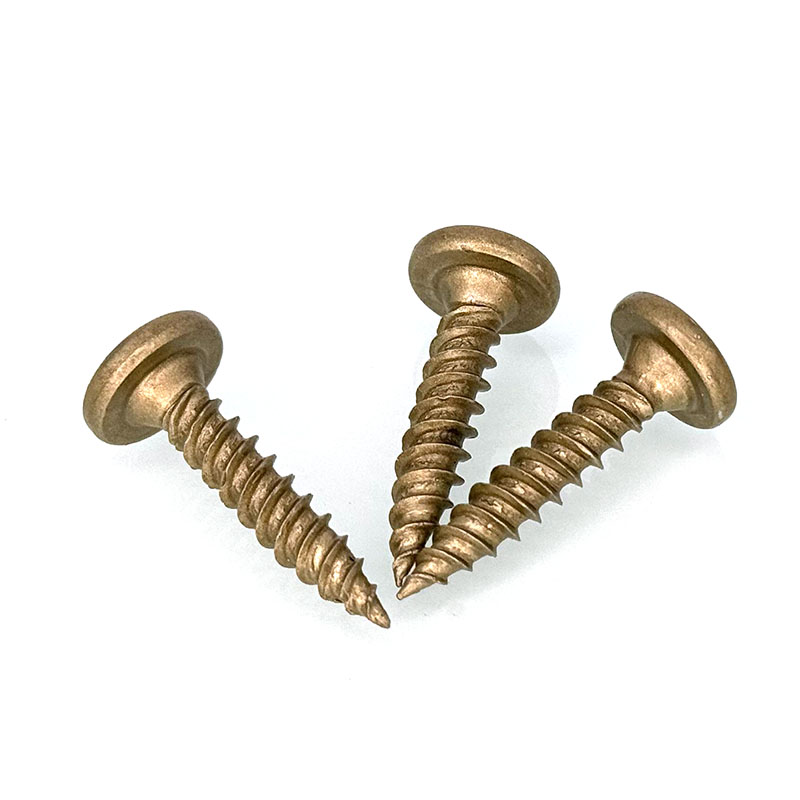

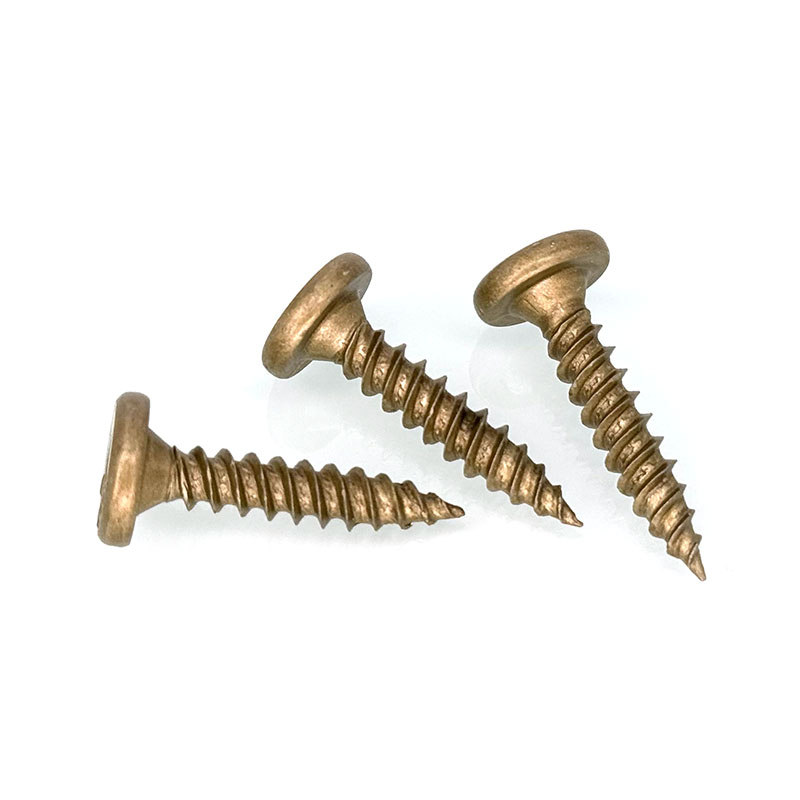

Pancake head fasteners are engineered to perform in a variety of applications.
They are specified in many metal roofing systems to attached SSR clips to metal or wood.
They are easy to install and provides optimal strength.
| Size: | M3.5~M4.8 |
| Lenght: | 15MM-150MM |
| Material: | C1022 |
| Thread : | Fine & Coarse & Twinfast |
| Head type: | Pancake head, phillips drive, Tapping point |
| Finish: | Ruspert/ Black/grey phosphate or zinc plated |
| Quality: | High-quality raw material, strict inspection |
TECHNICAL INFORMATION
Description: #10-13 Gimlet Point Self-Tapping screw
Head Style: Pancake head
Drive System: #2 square recess
Head Thickness: .095”
Material: C1018 carbon steel
Heat Treat: Case hardened to ANSI/ASME B18.6.4 specification
Surface treatment: Ruspert Coating
Salt Spray: 1,000hrs. Salt Spray Per ASTM G85)
Application: Steel (<=20ga) to wood. Can be used in treated lumber
Thread Detail: Major Diameter = .195” Minor Diameter = .125”
Description
{High Quality} 1000 HR Salt Spray Tested.
100% Zinc-Coated Steel.
Fully threaded.
{Versatile Utility} Perfect for Standing Seam Metal Roofing
Sharp or Drill tips for Wood or Metal applications.
{Simple to use}Can be installed by anyone, regardless of experience.
All Sharp Tip screws feature a Square Drive.
All Drill Tip screws feature a Combo Drive.
All screws include a matching driver for simple installation.
{Multiple Quantities and Sizes}250, 500, and 1,000-count available.
1" and 1.5" lengths.
The Pancake head screw provides up to 80% more pullout load compared to other screws. The single lead, low-angle thread helps reduce problems associated over-driving the fastener. The single lead thread also provides better control during installation, making it more difficult to overdrive the screw. Because the Concealor provides more consistent tightening, there is more resistance to loosening.

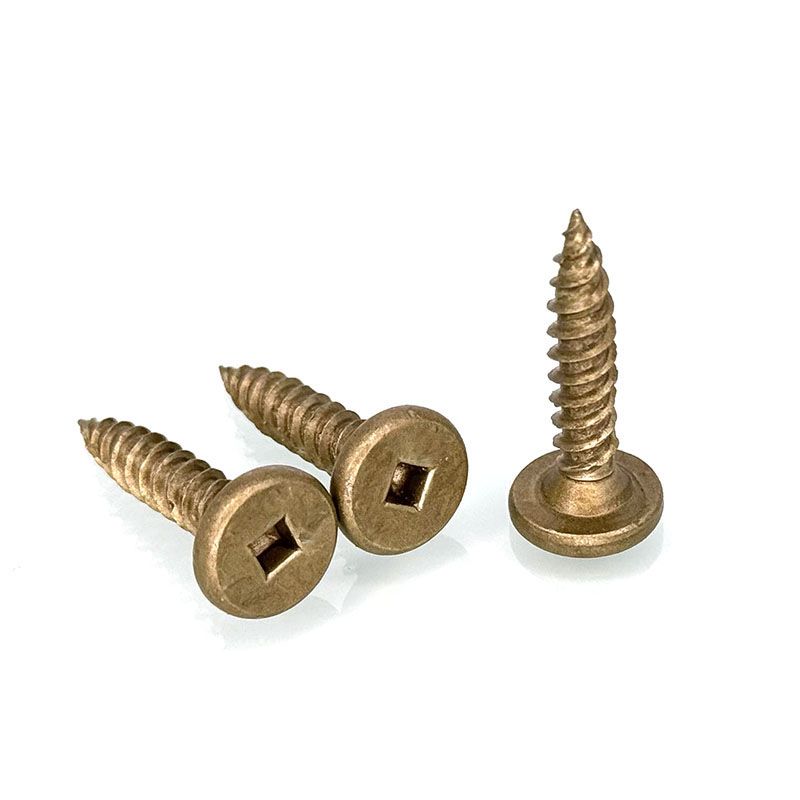

CONCEALOR Pancake Head Screws with the square recess provides the best stability during installation...and no stripping of the recess!
Installation WARNING! Using impact drivers can break the screw! Use a 2,500 RPM max variable speed screw drivers with torque control or depth sensing nosepiece.
