Pancake Head Screws
low profile head fasteners are engineered to perform in a variety of applications. They are specified in many metal roofing systems to attached SSR(Standing Seam Roof) clips to metal or wood. They are easy to install and provides optimal strength.
Piercing Point and Drill Point
Piercing Capacity: CS & 410SS <=20 ga

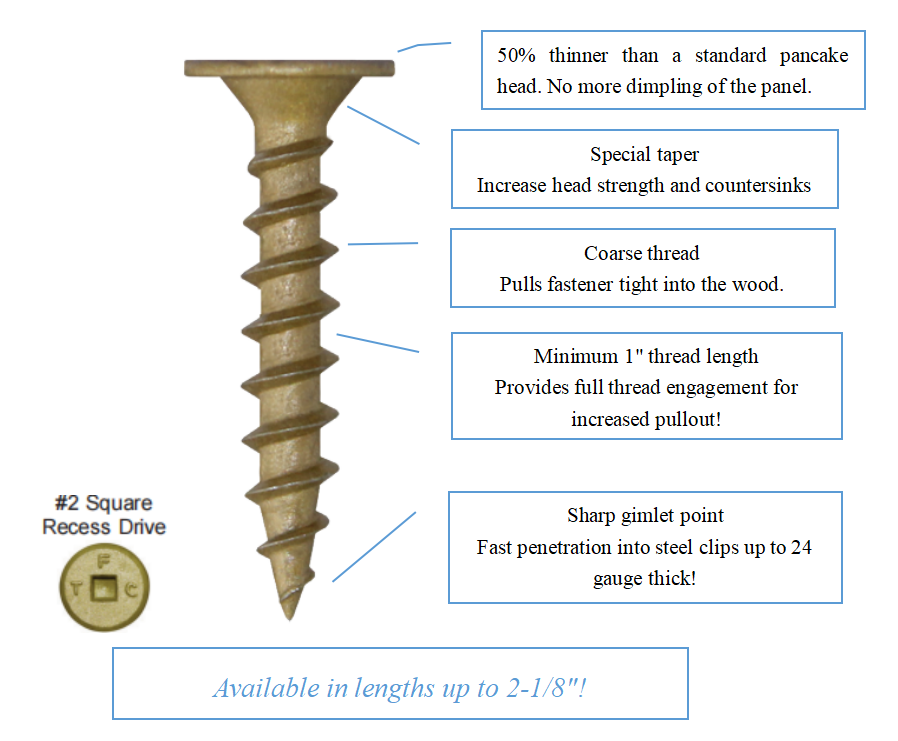

Ultra Low Profile Screws
ULP(Ultra Low Profile) screws are engineered to attach standing seam roof clips to wood. They are the preferred screw for attaching clip-less nail hem metal roof panels, are easy to install, and provide optimal strength. ULP's are supplied with Ruspert 1,000-hours salt spray coating which can be used in treated and fire treated lumber.

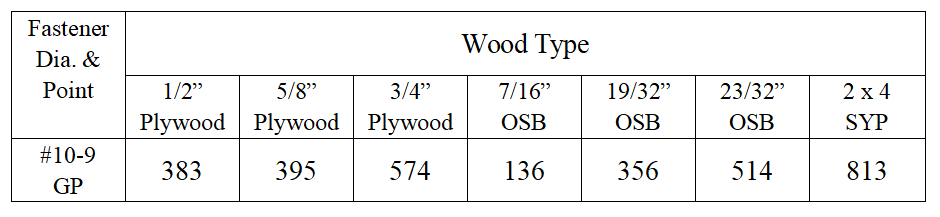

Pullout - Average Ultimate in Pounds

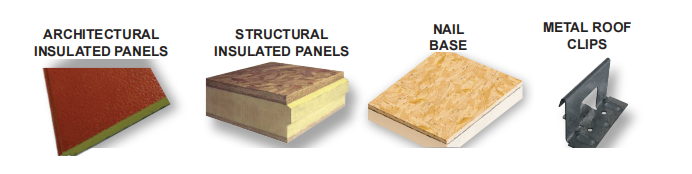

SPECIAL APPLICATIONS
Use to attach a variety of material to steel up to 1/4” thick!

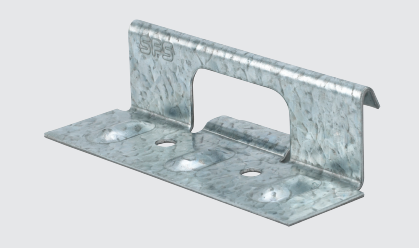

1/4" Snap Lock Engineered Panel Clip
Application Standing seam panel clips used for attachment of snap lock type panels wherein mechanical seaming is not required.
Features and Benefits
• Manufactured from high quality, corrosion resistant steel
meeting strict mechanical property requirements
• Tightly controlled manufacturing tolerances for a secure and
functional fit every time
• Allows unlimited thermal movement. Always follow the
standing seam panel manufacturer's details and instructions
on proper use, location and performance values as well as
properly fixing their respective roof panels to the structure to
prevent uncontrolled sliding.

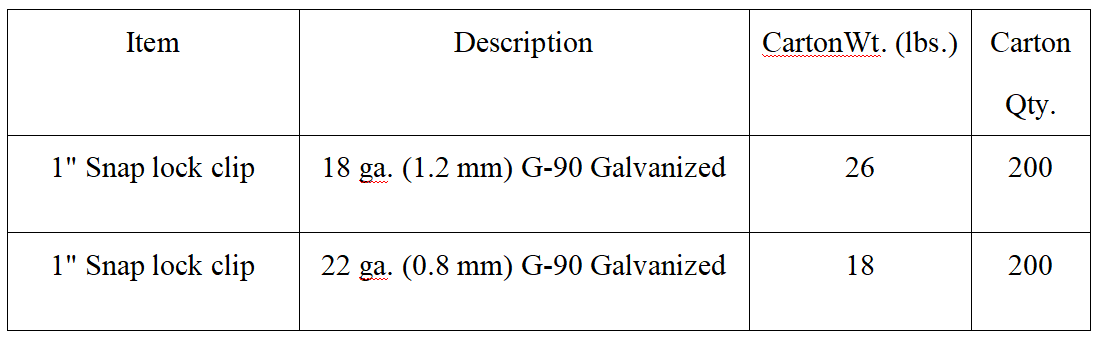

Product Selection

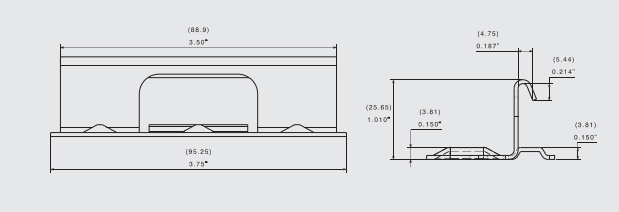

Specifications
Height: 1.01" (25.65 mm)
Width: 3.50" (88.90 mm)
Holes: 2-hole
